Specifications
Testltem	KV1700	Idle Current（10V）	1.1A
Motor Dimensions	φ28.9*31.8mm	Internal Resistance	79mΩ
Framework	12N14P	No.of cells	3-6S
Bearing Shaft	4mm	Propeller	5"-5.5"
Lead	20#AWG 120mm	Peak Current（6S）	36A
Weight	29.4g(W/O Silicone Wire)	Max.Power（6S）	970W

Testltem	KV1900	Idle Current（10V）	1.3A
Motor Dimensions	φ28.9*31.8mm	Internal Resistance	66mΩ
Framework	12N14P	No.of cells	3-6S
Bearing Shaft	4mm	Propeller	5"
Lead	20#AWG 120mm	Peak Current（6S）	46A
Weight	29.4g(W/O Silicone Wire)	Max.Power（6S）	1160W

Testltem	KV2400	Idle Current（10V）	1.7A
Motor Dimensions	φ28.9*31.8mm	Internal Resistance	47mΩ
Framework	12N14P	No.of cells	3-4S
Bearing Shaft	4mm	Propeller	5"-5.5"
Lead	20#AWG 120mm	Peak Current（4S）	43A
Weight	29.5g(W/O Silicone Wire)	Max.Power（4S）	720W

EMAX brushless motors are suitable for a wide range of hobby, engineering, and custom motion-control applications. They’re ideal for high-speed propulsion, precision motion control, custom cooling fans, gimbals, 3D-printed mechanisms, and STEM or engineering prototypes.

If you’re building lightweight, high-efficiency systems that need reliable power, smooth operation, and long service life, EMAX brushless motors are the go-to solution.

23XX

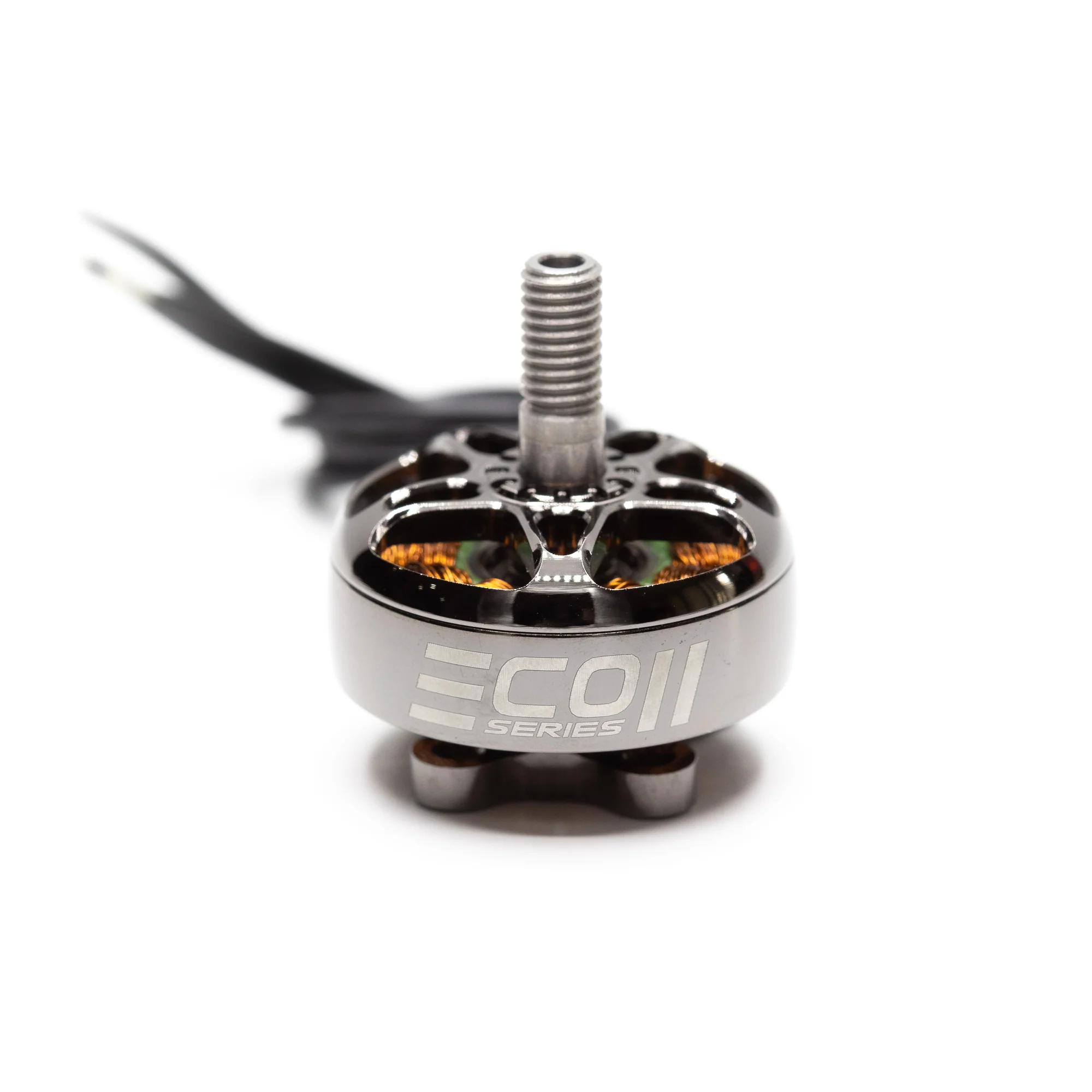

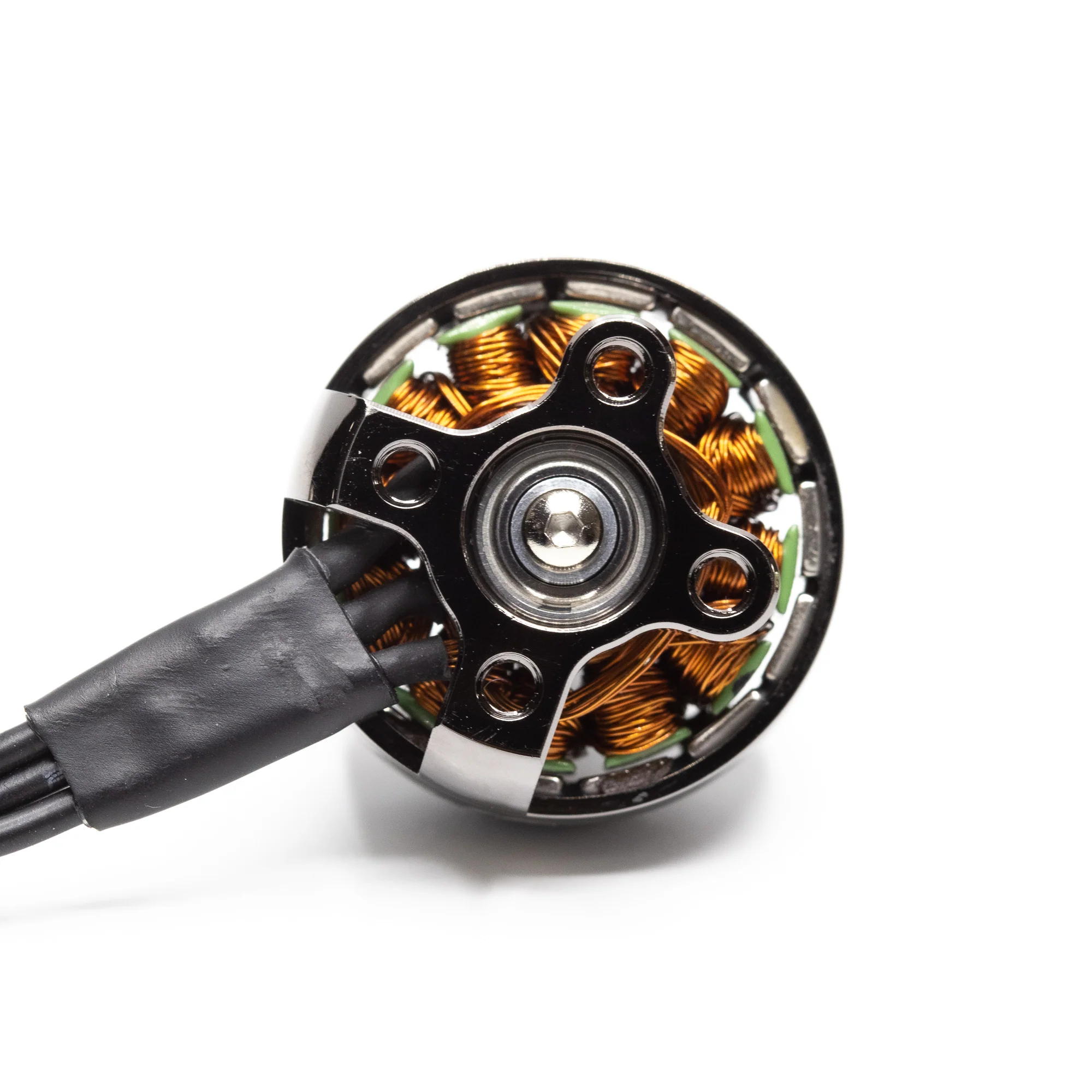

ECO II 2306 Brushless Motor - CHOOSE KV

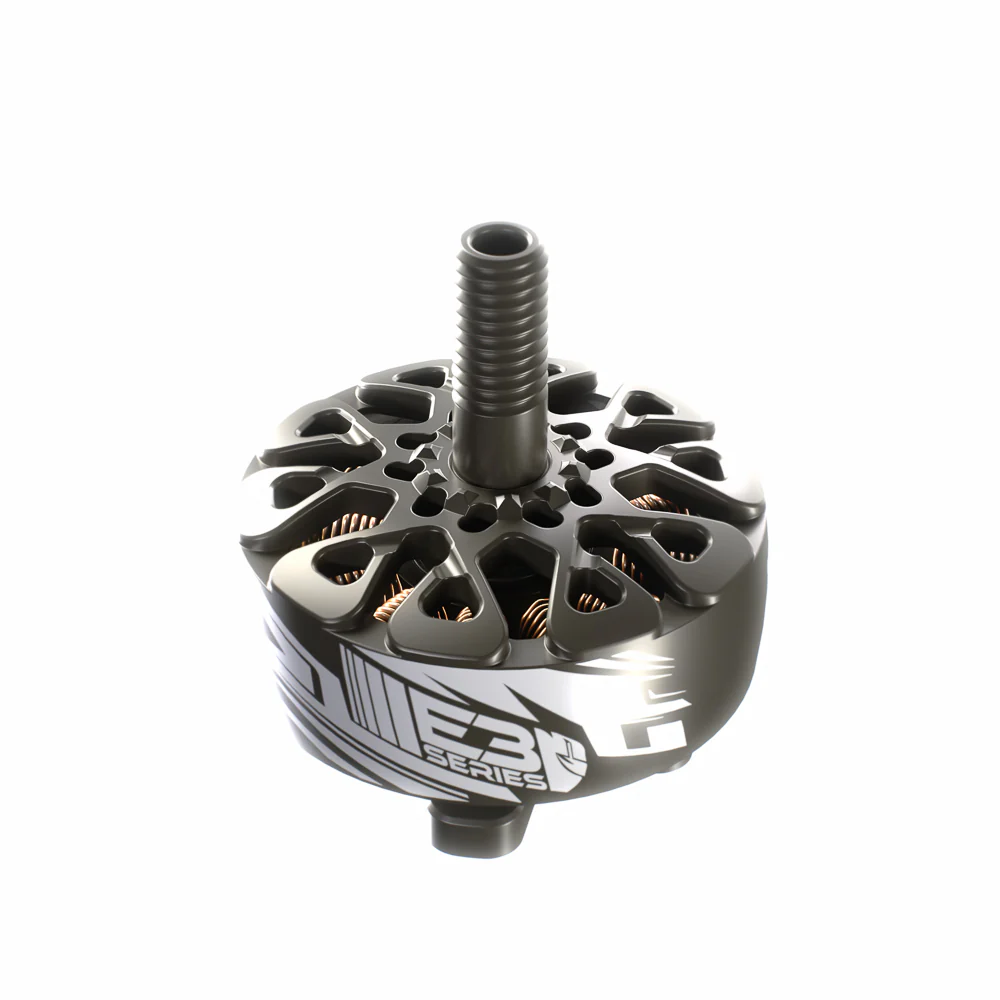

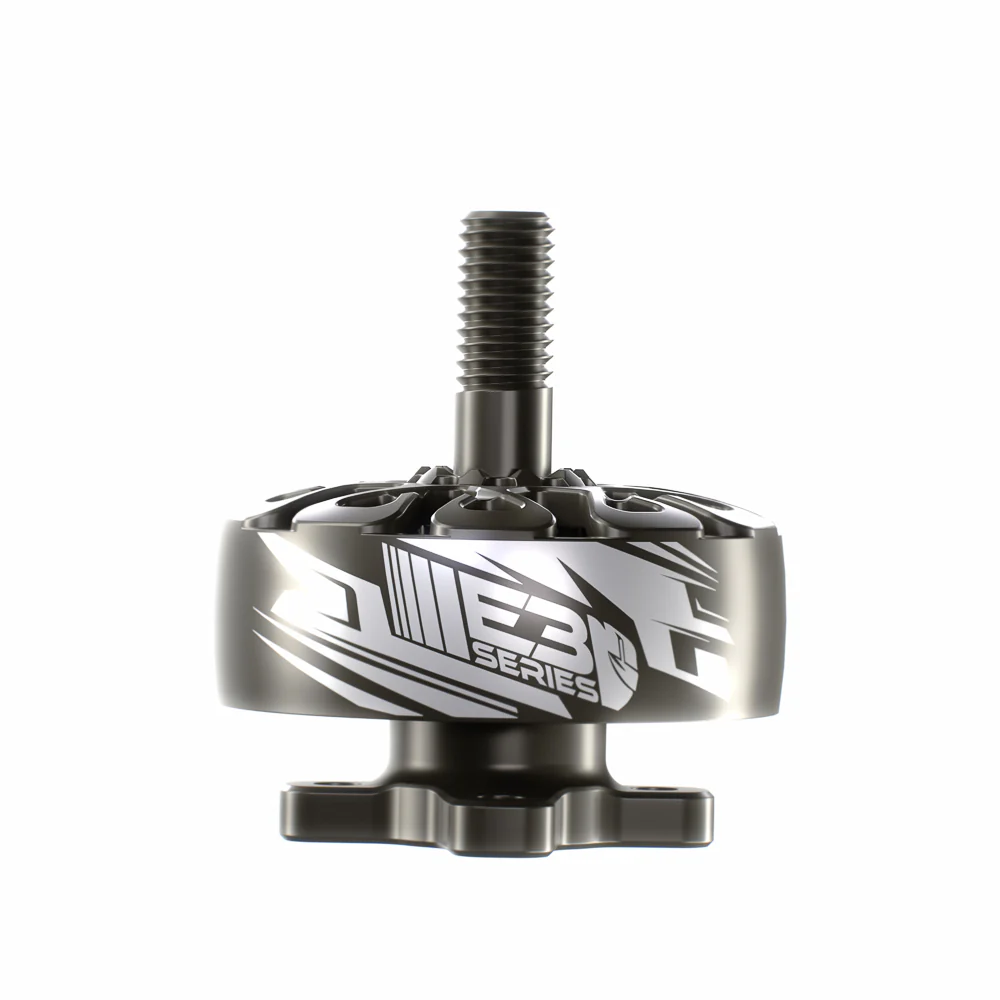

E3 Series 2306 Brushless Motor - CHOOSE KV
