GTII-2212T Brushless Motor - 2200kv - Threaded Shaft

Specifications:

Framework: 12N14P
Length: 48.1mm
Diameter: 27.7mm
Recommended Propeller Sizes 1800kv: 6"-8"
Recommended Propeller Sizes 2200kv: 5"-7"
Recommended Propeller Sizes 2450kv: 5"-6"
Motor weight 1800kv: 52.2g
Motor weight 2200kv: 52.3g
Motor weight 2450kv: 52.5g
Prop adapter shaft thread: M5
Bearing Shaft: 4mm
Shaft Thread: CW

Features:

- Silky Smooth Precision Ball-bearing
- Durable Steel Shaft
- High Quality Anodizing
- 19x16mm Mounting
- Multi-strand Winding for optimal performance

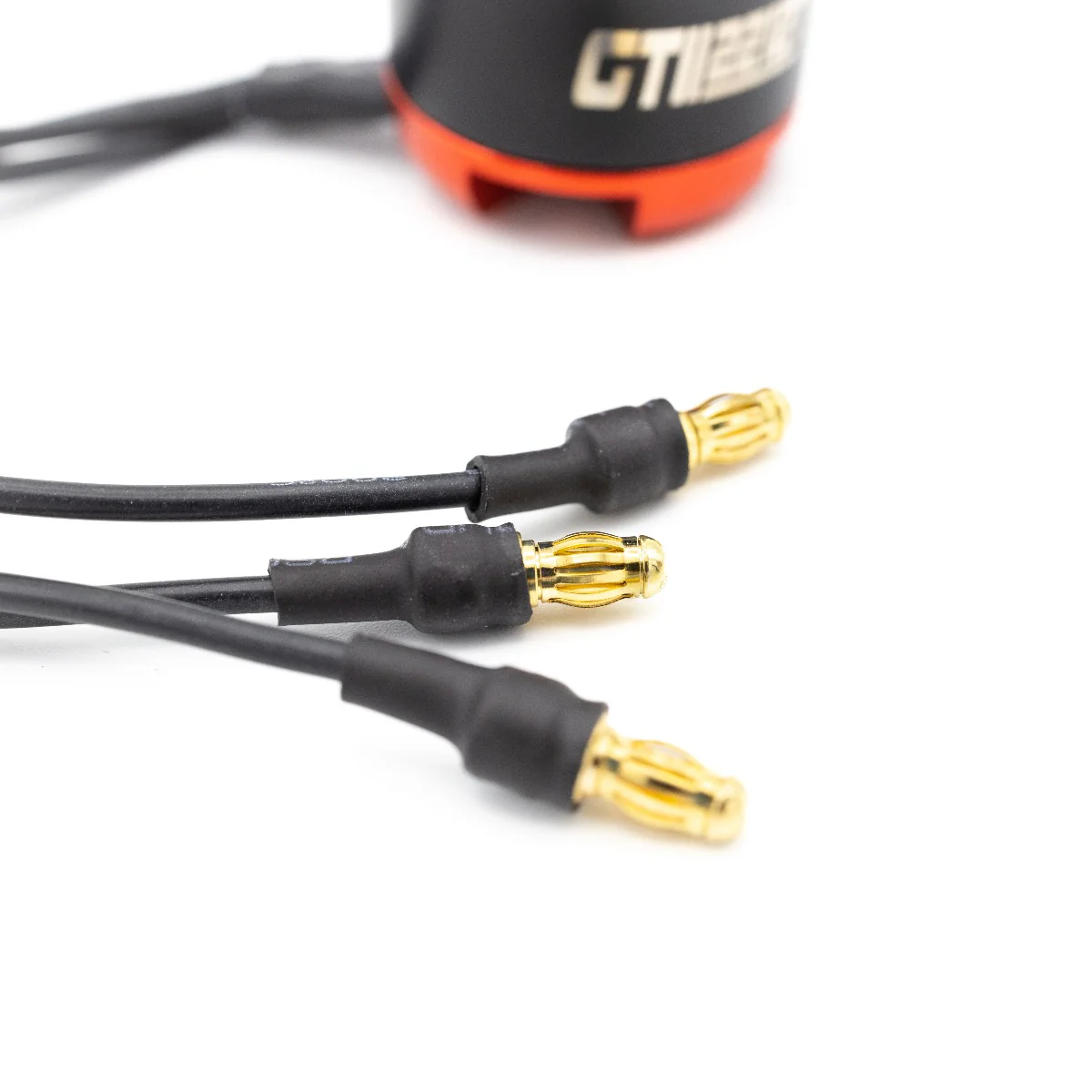

- Long 120mm 20 AWG Silicone motor wires w/ bullet connectors

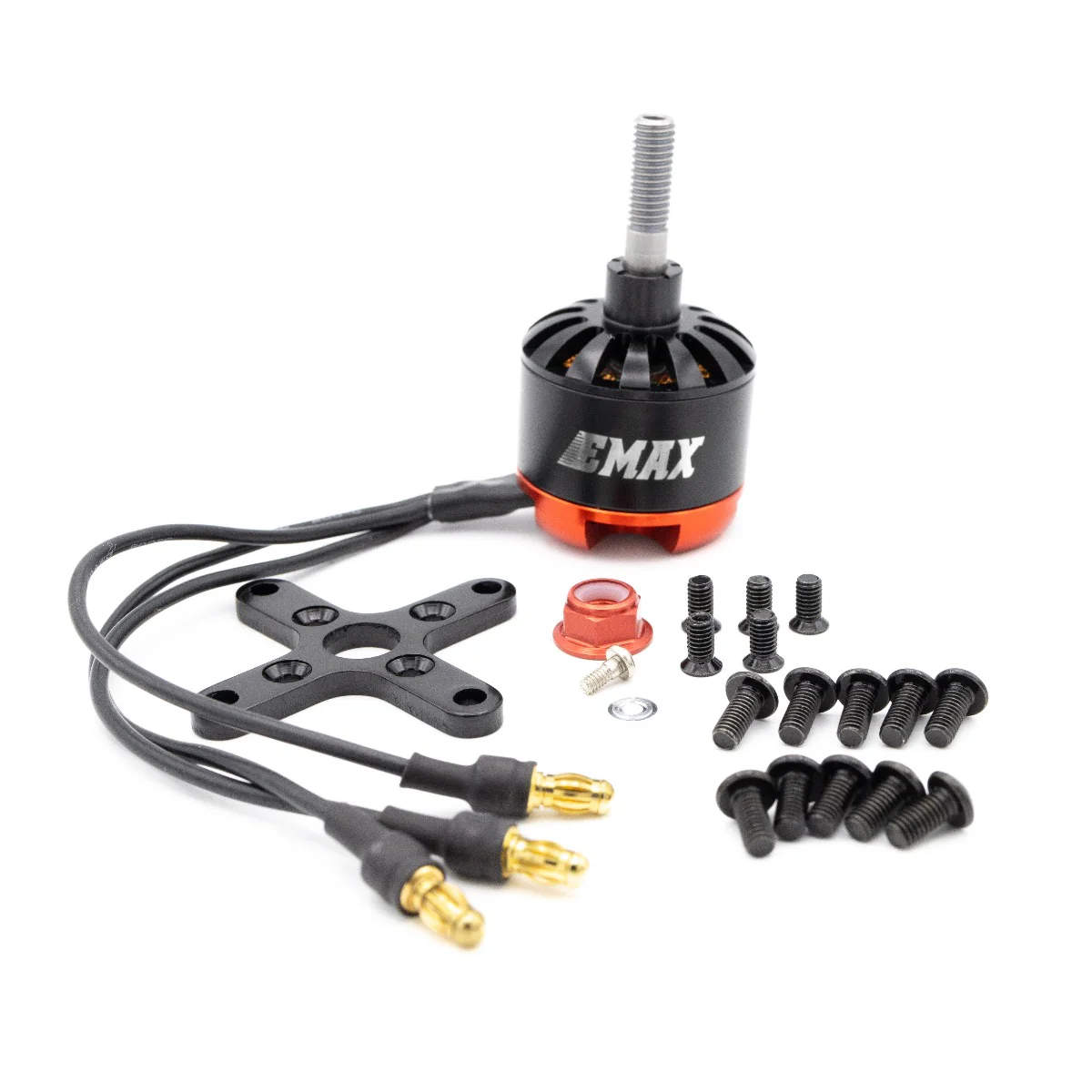

lncludes:

5x M3x6 Screws for Motor Mount
5x M3×6 Screws for End Bell
5x M3×7 Screws for End Bell
1x Washer and Screw for shaft
1x Aluminum M5 Ny-lock nut
1x Motor Mount



EMAX brushless motors are suitable for a wide range of hobby, engineering, and custom motion-control applications. They’re ideal for high-speed propulsion, precision motion control, custom cooling fans, gimbals, 3D-printed mechanisms, and STEM or engineering prototypes.

If you’re building lightweight, high-efficiency systems that need reliable power, smooth operation, and long service life, EMAX brushless motors are the go-to solution.
