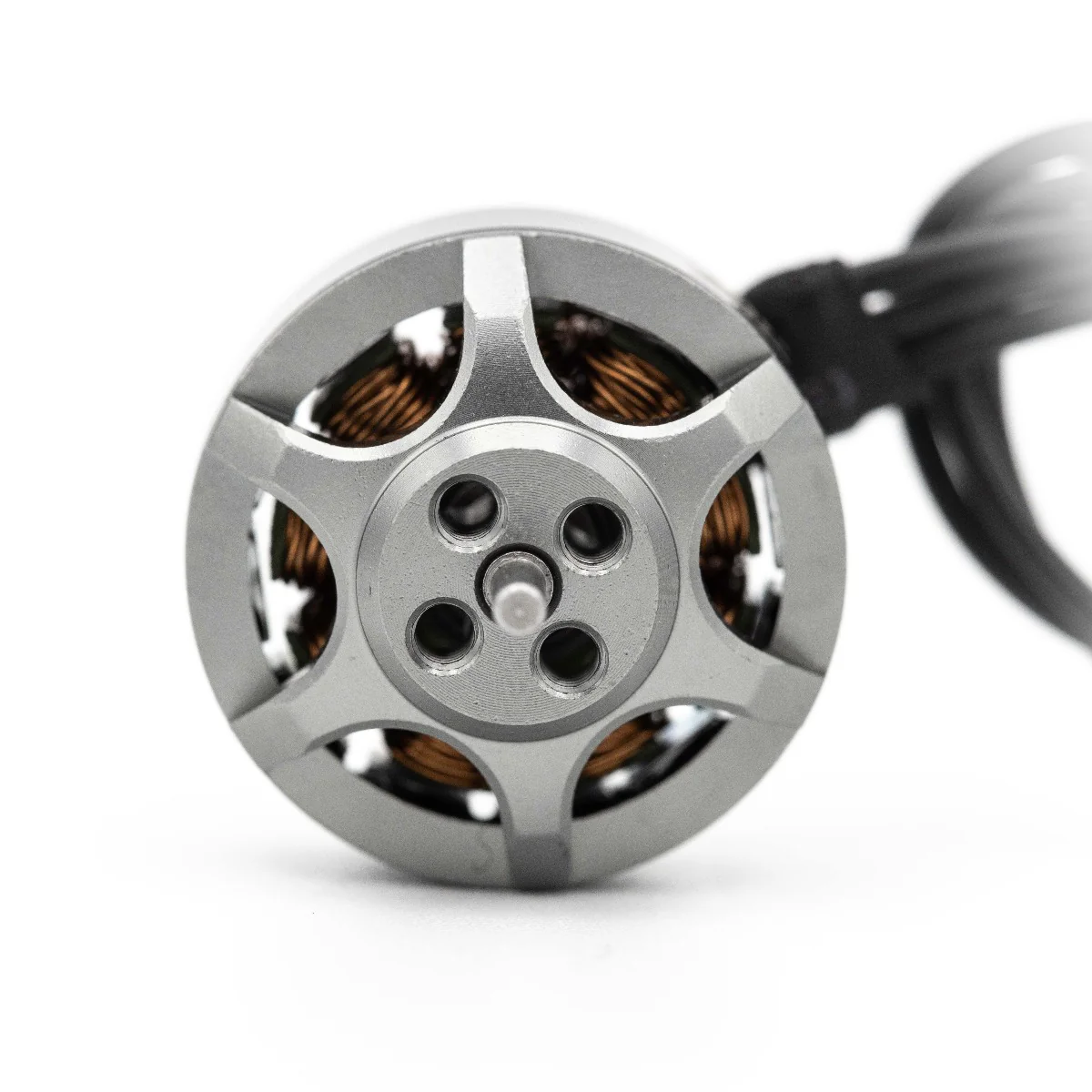

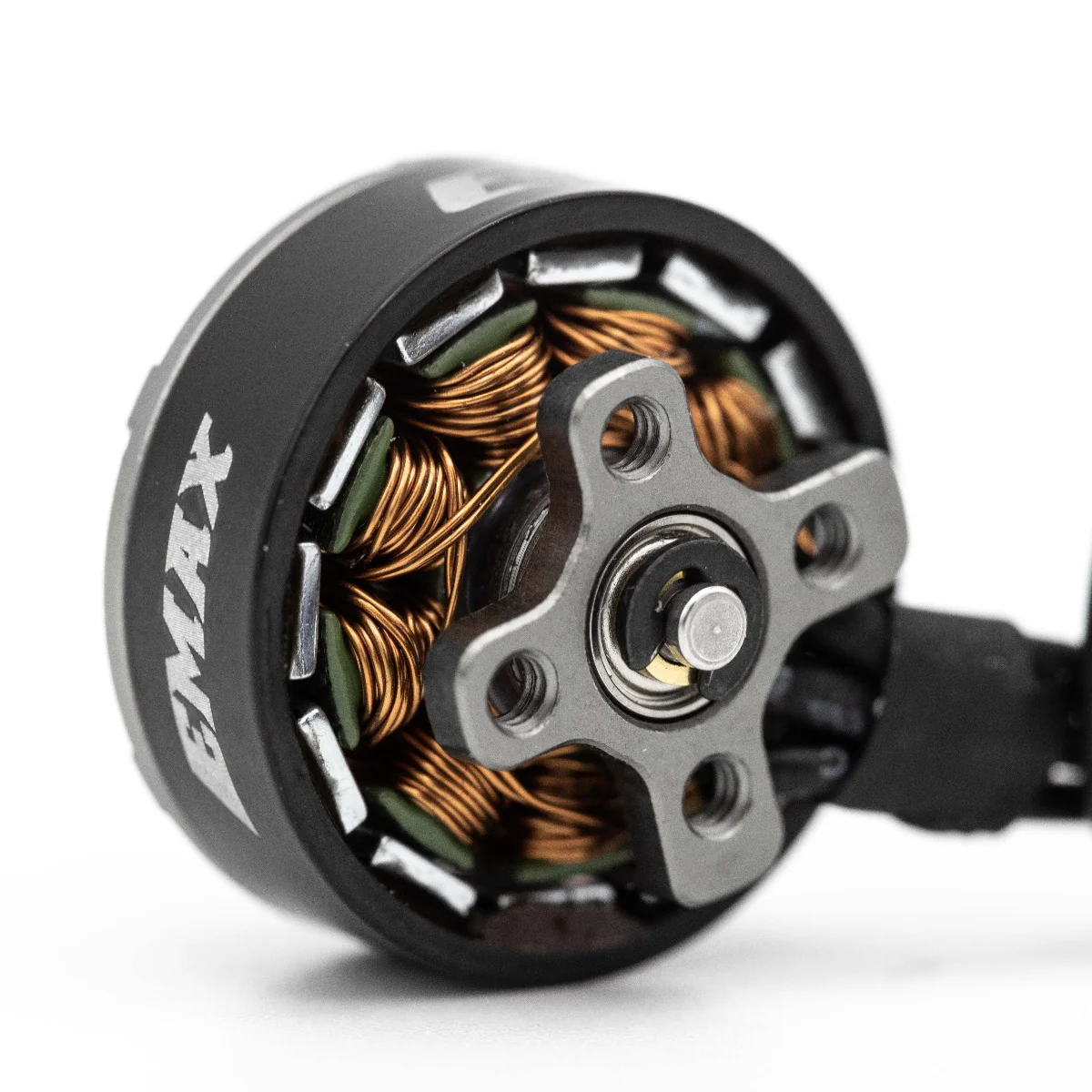

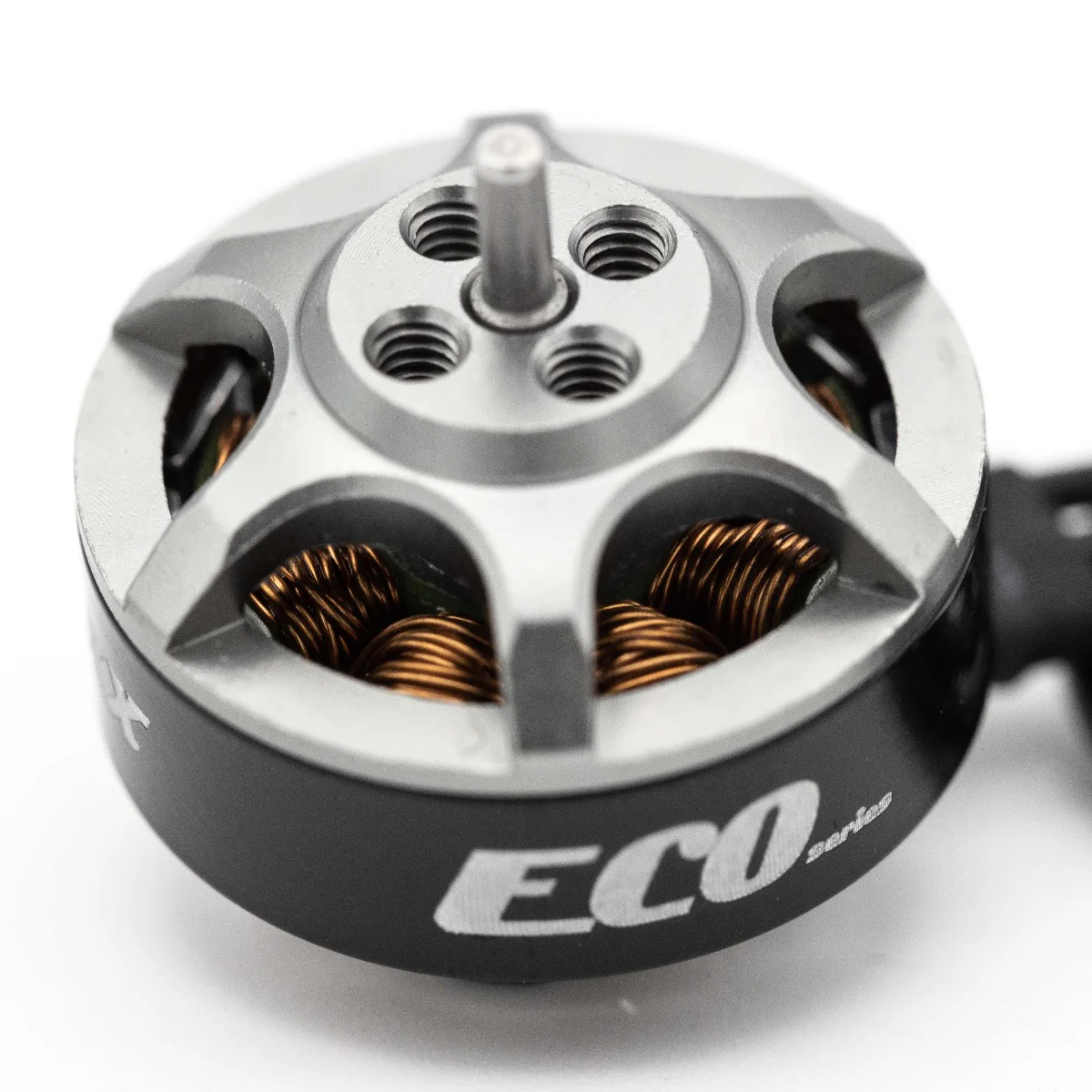

ECO Micro Series 1404 - 3700kv Brushless Motor
Specifications
- Framework: 9N12P
- Length: 19.75mm
- Diameter: 18.8mm
- Propeller: 2.5" - 4"
- Weight: 8.6g (W/O Silicone Wire)
- Prop adapter shaft diameter: 1.5mm
- Bearing Shaft: 2mm
- Shaft Thread: CW
Features
- Precision durable ball-bearings
- Steel shaft for high strength
- Anodizing for finish and corrosion resistance
- 9x9mm hole pattern
- Multi-strand copper windings

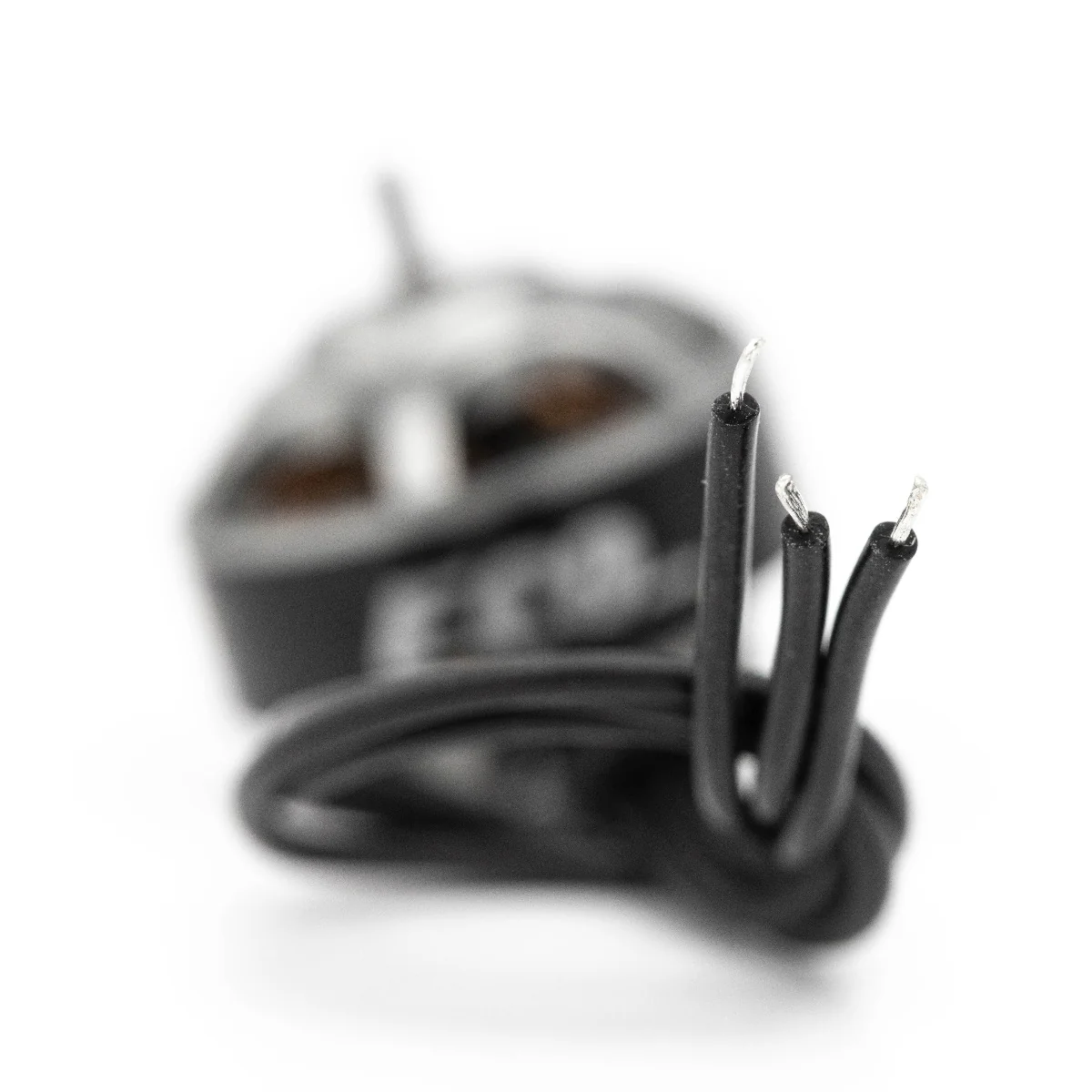

- 100mm 26 AWG silicone wire
EMAX brushless motors are suitable for a wide range of hobby, engineering, and custom motion-control applications. They’re ideal for high-speed propulsion, precision motion control, custom cooling fans, gimbals, 3D-printed mechanisms, and STEM or engineering prototypes.
If you’re building lightweight, high-efficiency systems that need reliable power, smooth operation, and long service life, EMAX brushless motors are the go-to solution.
