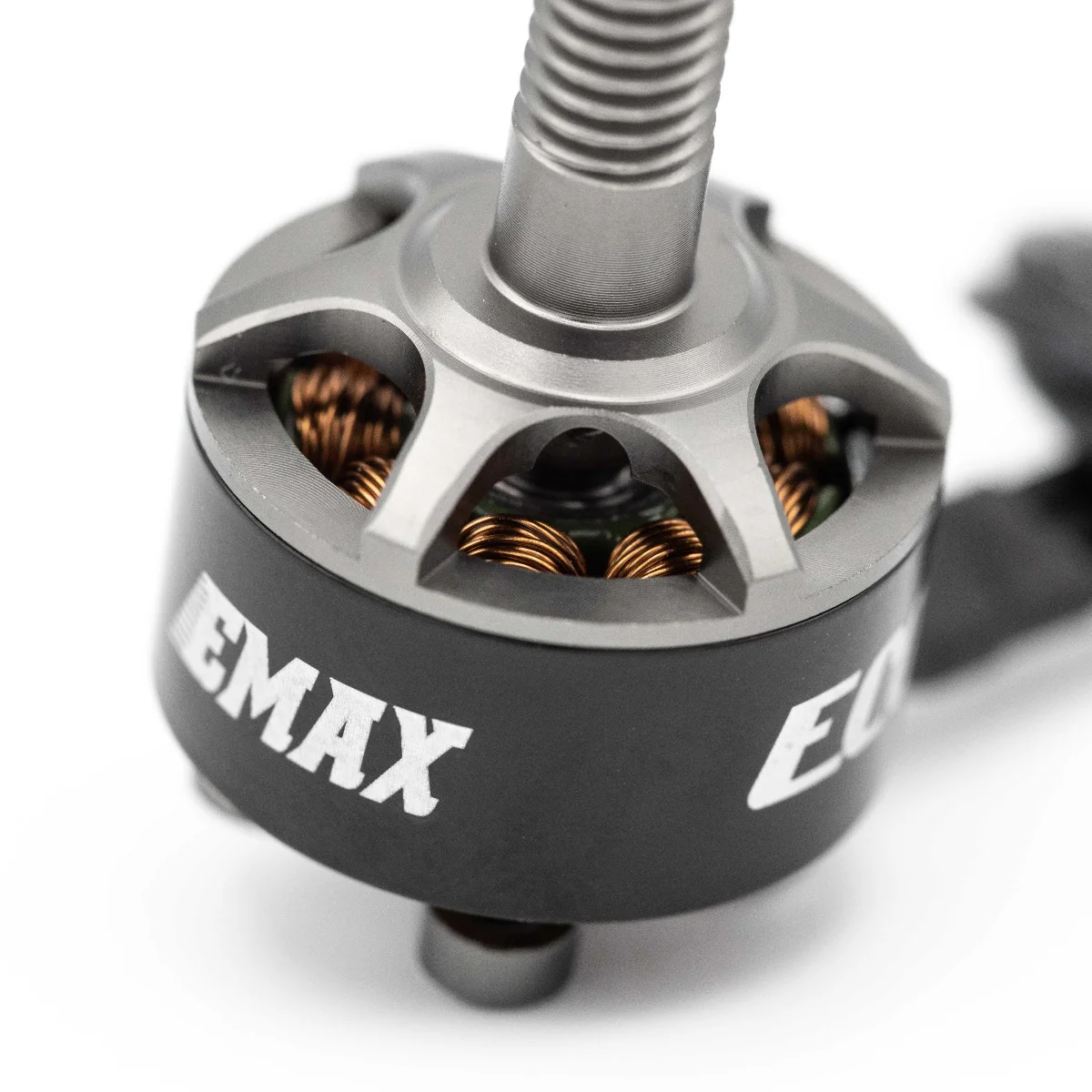

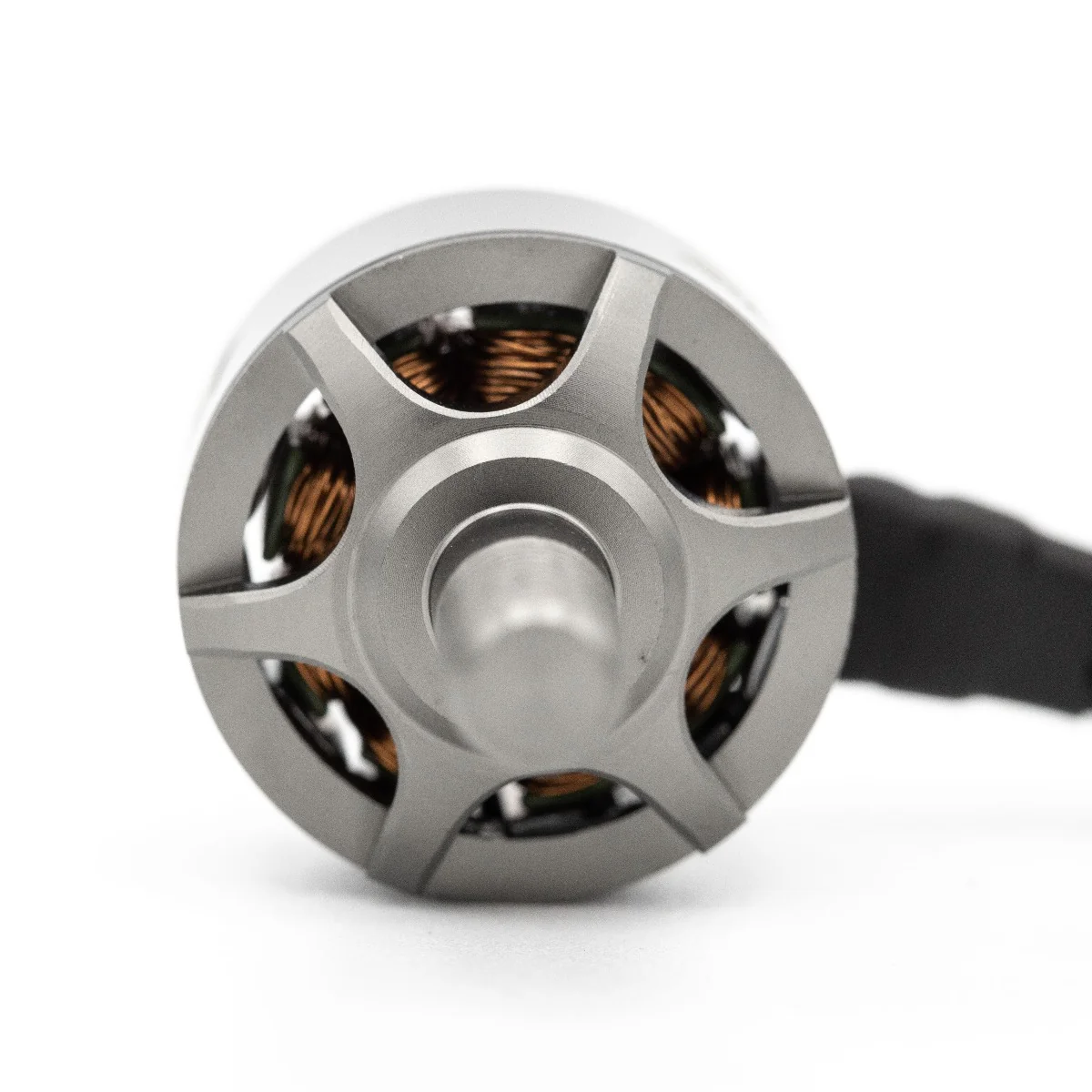

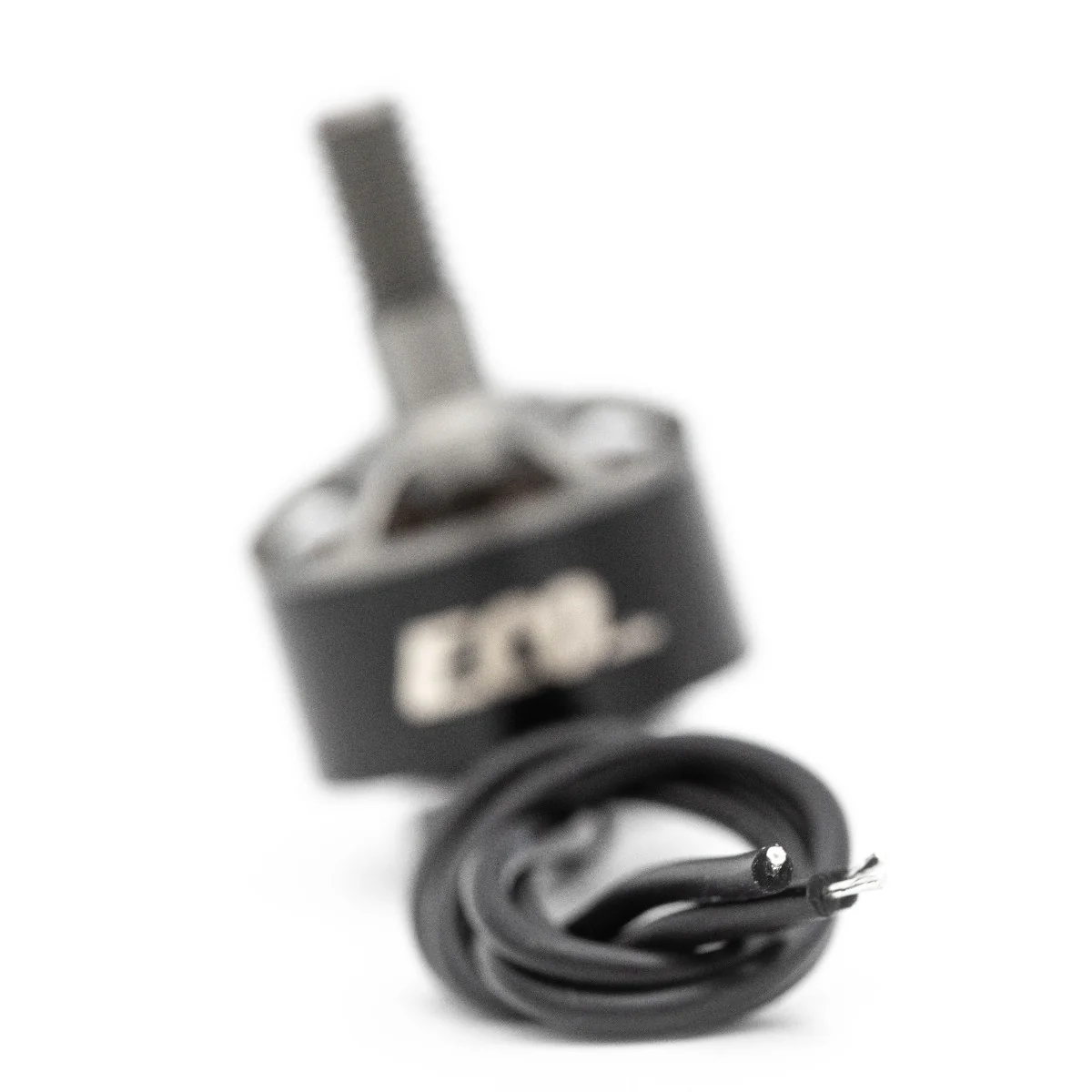

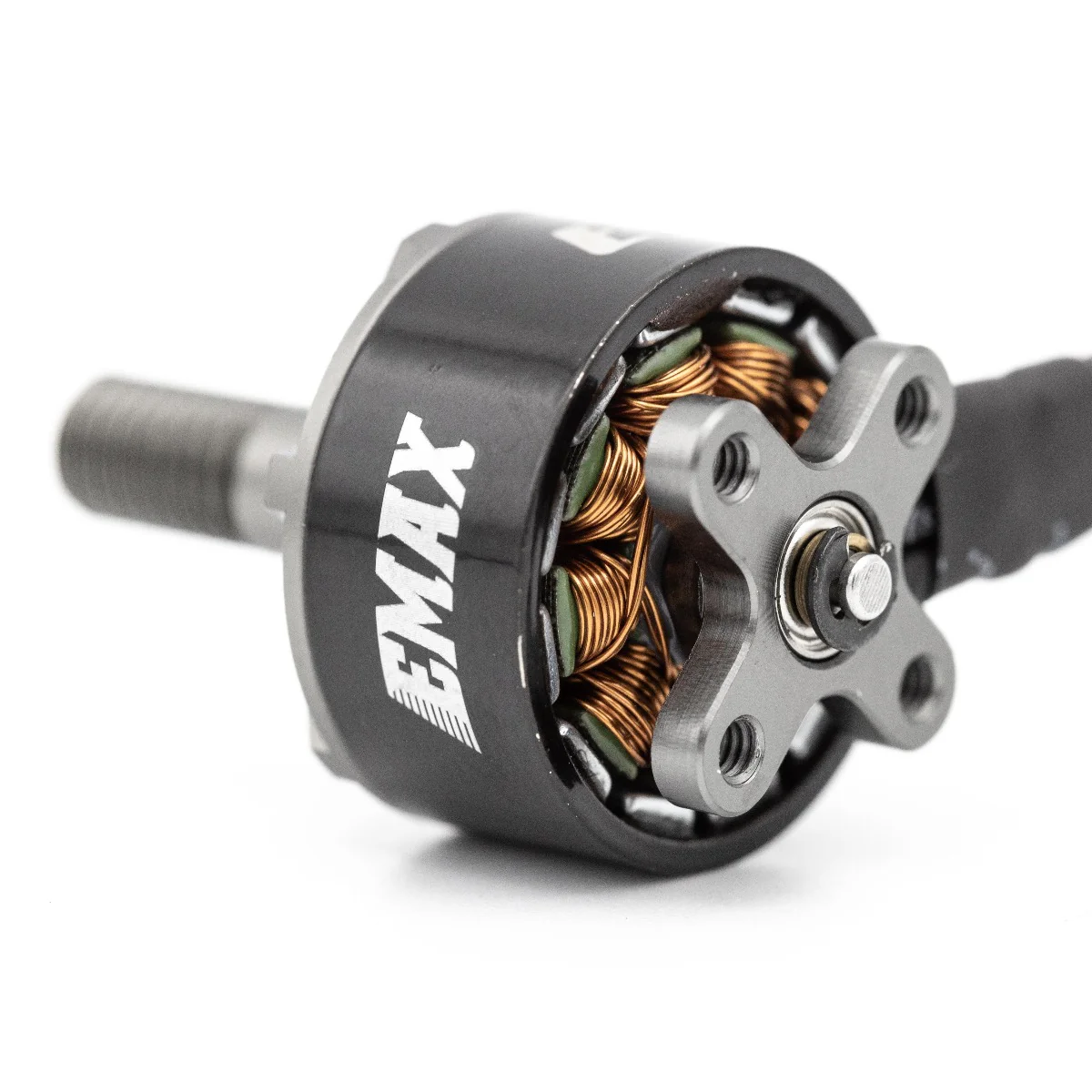

ECO Micro Series 1407 - 3300kv Brushless Motor
Specifications
- Framework: 9N12P
- Length: 31.2mm
- Diameter: 18.8mm
- Propeller: 3" - 4"
- Weight: 13.7g (W/O Silicone Wire)
- Prop adapter: M5
- Bearing Shaft: 2mm
- Shaft Thread: CW
Features
- Precision durable ball-bearings
- Steel shaft for high strength
- Anodizing for finish and corrosion resistance
- 12x12mm hole pattern
- Multi-strand copper windings
- 90mm 26 AWG silicone wire
EMAX brushless motors are suitable for a wide range of hobby, engineering, and custom motion-control applications. They’re ideal for high-speed propulsion, precision motion control, custom cooling fans, gimbals, 3D-printed mechanisms, and STEM or engineering prototypes.
If you’re building lightweight, high-efficiency systems that need reliable power, smooth operation, and long service life, EMAX brushless motors are the go-to solution.
